FW-XF7U Thermal Imaging Monocular with 1000m-9600m Detection Distance 1920x1080 OLED Display and >5.5h Battery Life

Brand Name : Forward

Model Number : FW-XF7U

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T

Supply Ability : 100 pcs/year

Delivery Time : 5-8 work days

Detection Distance : 1000m-9600m

Display type : 1920x1080 OLED

Battery : >5.5h

wavelength : 1535nm

Range : 30m~3Km，±2m ( Mid-size car )

Positioning accuracy : 5m (CEP), 10m (PE)

Contact Now

Descriptions of FW-XF7U Aim assist system Infrared night vision reconnaissance

The aiming assistance system integrates infrared imaging, visual imaging, laser ranging, positioning and orientation, and meteorological measurement; the built-in ballistic algorithm can perform all-weather aiming, collect meteorological data related to shooting in real time, and perform ballistic calculations to provide assistance for shooting.

Specifications of FW-XF7U Aim assist system Infrared night vision reconnaissance

Infrared thermal imaging Detector UFPA, 640×512, 12 μm
NETD ≤ 40 mK
Infrared lens 50mm F1, 8.8° ×7°

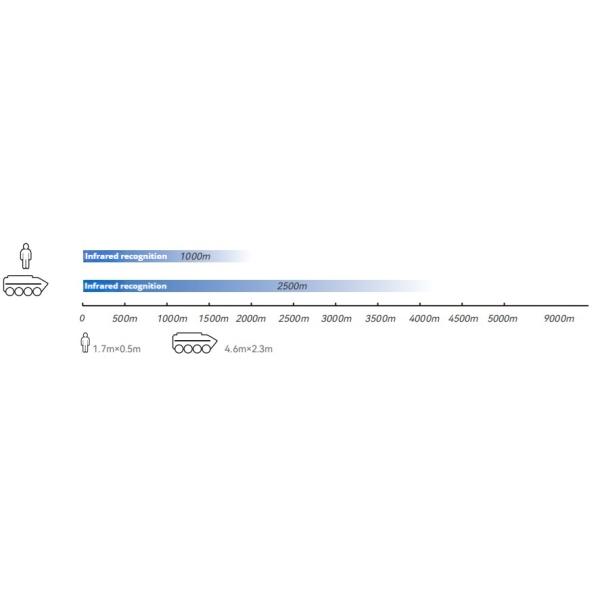

Range ≥ 2.5 km, for cars, ≥ 1.0km, for people
Visible light Detector CMOS 1920×1080, 1/2.8
Resolution 1350 ×1080
Lens WFOV 40° ×32° , NFOV 0.35° ×0.28°
Range ≥ 9.5km, for cars；≥ 4km,for people
Laser Distance Measurement Wavelength 1535nm
Measuring range 30m~3Km,±2m ( Mid-size car )
Positioning and Orientation Model BeiDou /GPS/GLONASS
Positioning accuracy 5m (CEP), 10m (PE)
Target positioning accuracy ≤ 20m@1Km
Positioning angle accuracy 0.1° (RMS) elevation / 0.2° (RMS) azimuth
Intelligent automatic magnetic declination correction Automatically identifies local magnetic declination (at a given location), eliminating the need for manual correction
Display Display type OLED, 1920×1080 Binocular
Vision adjustment -5-(+5)
Storage Capacity 128GB
Power Video ≥ 4 hours; BMP images ≥ 10,000
Power supply Battery Type ICR 18650, 4 sections
Battery life ≥ 5 h
Interface Data Interface USB
Video Interface PAL
Physical properties Size 210mm×178mm×75mm (L×W×H)
Weight ≤ 1.75 Kg (including battery )
Protection level IP67
Operating temperature -40℃ ~ +60℃
Meteorological parameters Temperature -40℃ ～ 60℃
Humidity 0%RH ～ 100%RH
Wind speed -25m/s ～ +25m/s
Air pressure 200hPa ～ 1100hPa
